TELEPHONY QA · TWILIO · FULL STACK

Authorized IVR automation & telephony validation platform

A Milestone 1 vertical slice from operator console to live call: Next.js → NestJS → PostgreSQL → Twilio Programmable Voice → authorized IVR → timed DTMF → signature-validated webhooks → persisted result. Not a marketing site—an auditable test instrument.

Next.js 16NestJS 11Prisma 6PostgreSQL 16Twilio VoiceTwiML DTMFWebhooksDocker
Industry
Enterprise IVR · contact-center operations · QA
Product
Authorized IVR validation & telephony test console
Users
Operators, backend service, Twilio (webhooks)
Stack
Next.js · NestJS · Prisma · Postgres · Twilio SDK
Proof
3 sanitized screenshots · OpenAPI · health preflight JSON

The problem

IVR validation is usually manual: an engineer dials, waits through prompts, keys a test value, then reconstructs what happened from the Twilio console. That workflow is opaque, hard to audit, and easy to mis-time—especially when post-answer settle and pre-menu wait are conflated.

Constraints

Delivery stayed inside the client's stack, tenancy, compliance and media-ownership boundaries. Where a choice was forced (suite vs owned plane, BYOC vs CPaaS, local vs cloud models), the architecture section below records the trade-off rather than a marketing rewrite.

Enterprises need proof that a known DTMF value can be entered at the right moment on an already-approved destination, with durable records: who started the run, which line was used, Call SID, digits sent, and how the call ended.

The solution

Three ownership domains stay separate:

  • Twilio — originate, play DTMF via TwiML, report status.
  • PostgreSQL — runs, attempts, line AVAILABLE/BUSY, call_events, results.
  • NestJS — POST /test-runs, calls.create, TwiML builder, webhook state machine.
  • Next.js — health strip, timing fields, Start/Refresh, polling while active.

Starting a test is one REST call; everything after is webhook-driven. The destination IVR number is server-side only (TWILIO_TEST_NUMBER).

Architecture

flowchart TB
  UI["Next.js operator console"] -->|"REST"| API["NestJS API"]
  API --> DB["PostgreSQL 16"]
  API -->|"calls.create"| TW["Twilio Voice"]
  TW --> IVR["Authorized IVR"]
  TW -->|"POST /twilio/*"| API

Operator console

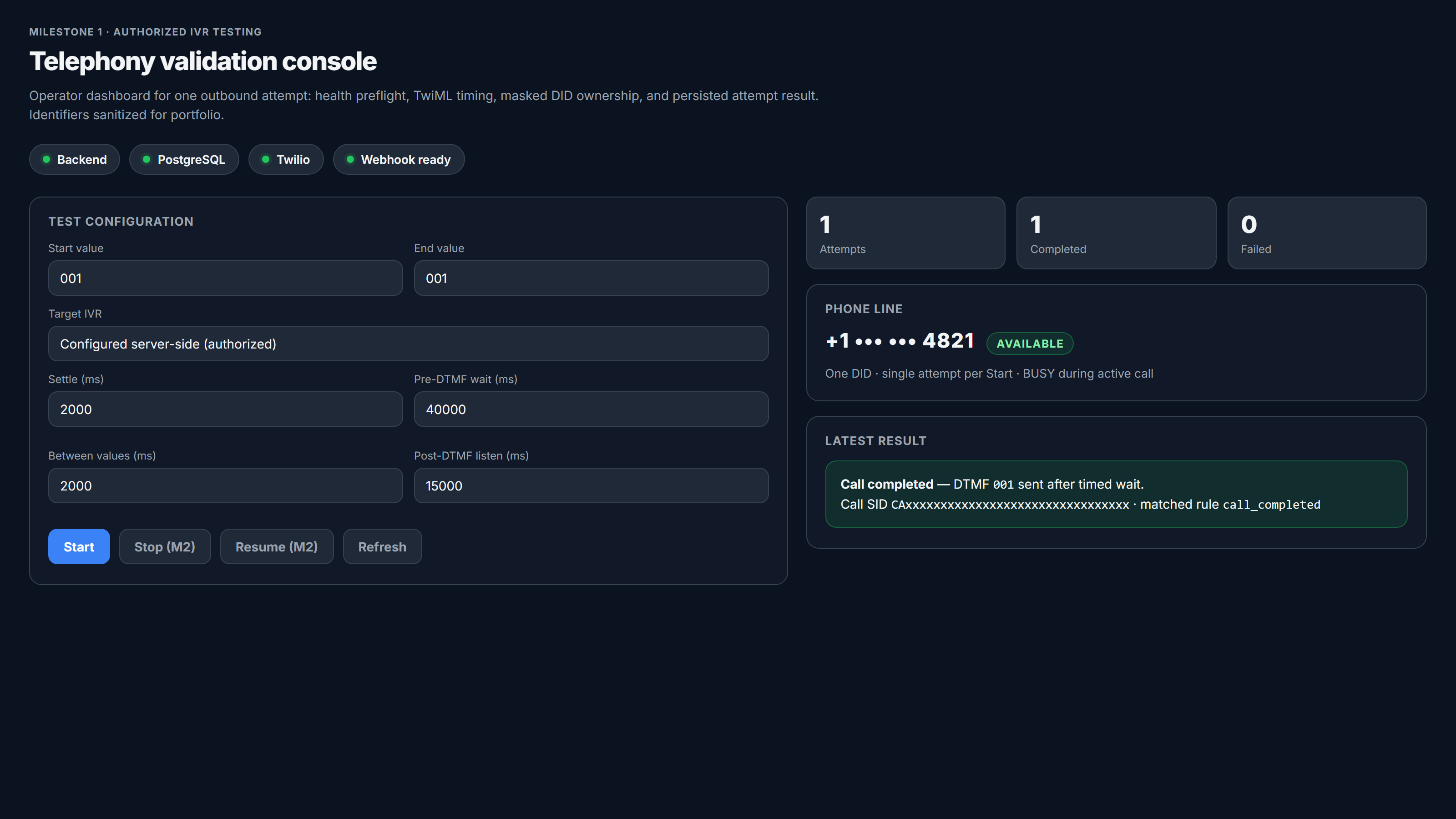

Next.js dark operator console with health pills TwiML timing masked phone line and completed attempt result

Dark operational UI: four health pills (backend, Postgres, Twilio, webhook URL), explicit TwiML timing fields, masked DID with line state, summary counts, and a stored result panel. Stop/Resume are Milestone 2 placeholders; Start and Refresh are live in M1.

Evidence & API surface

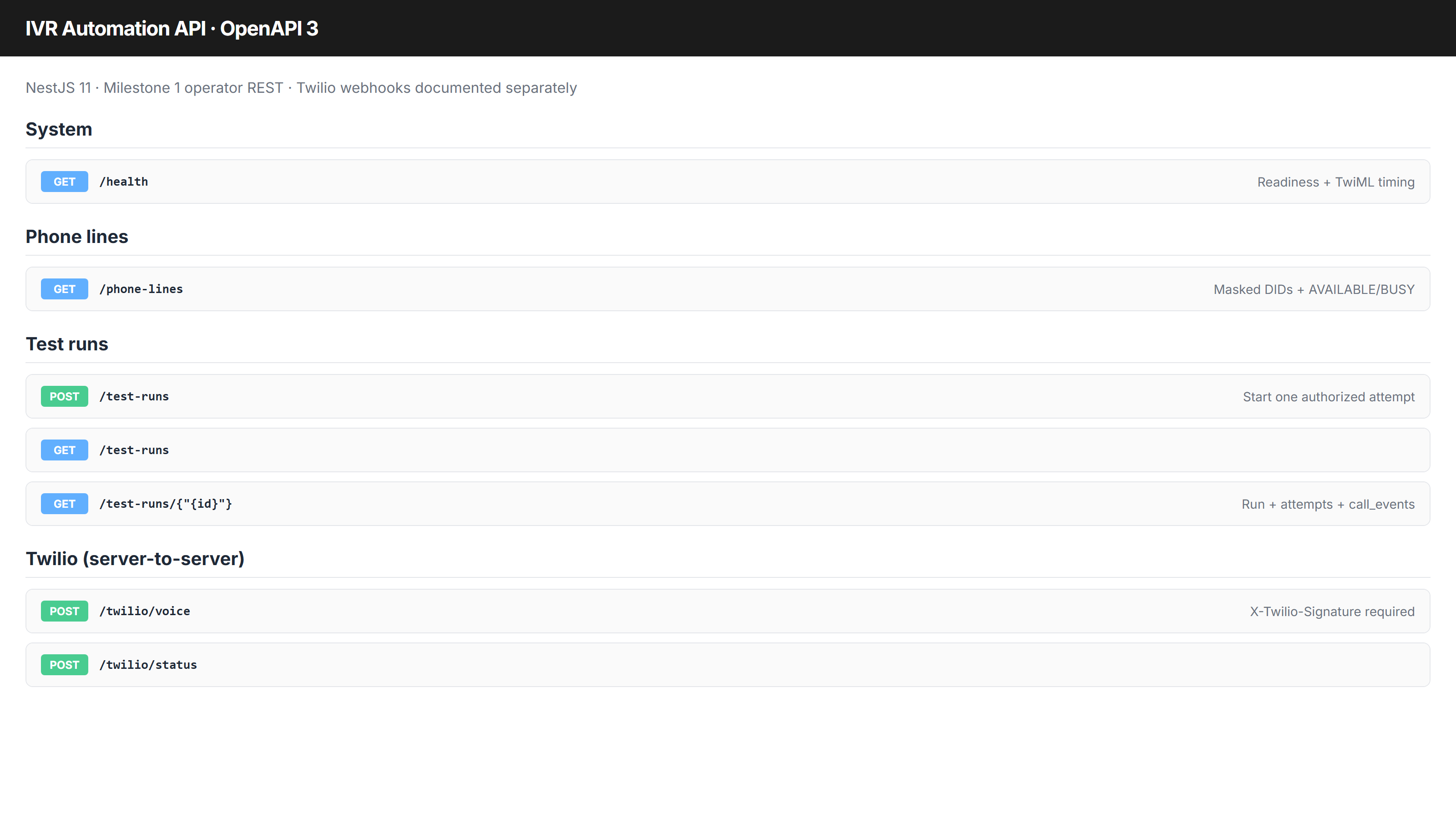

NestJS OpenAPI Swagger UI for health phone-lines and test-runs endpoints

OpenAPI at /api documents operator REST. Twilio consumes /twilio/voice and /twilio/status with signature validation—not the browser.

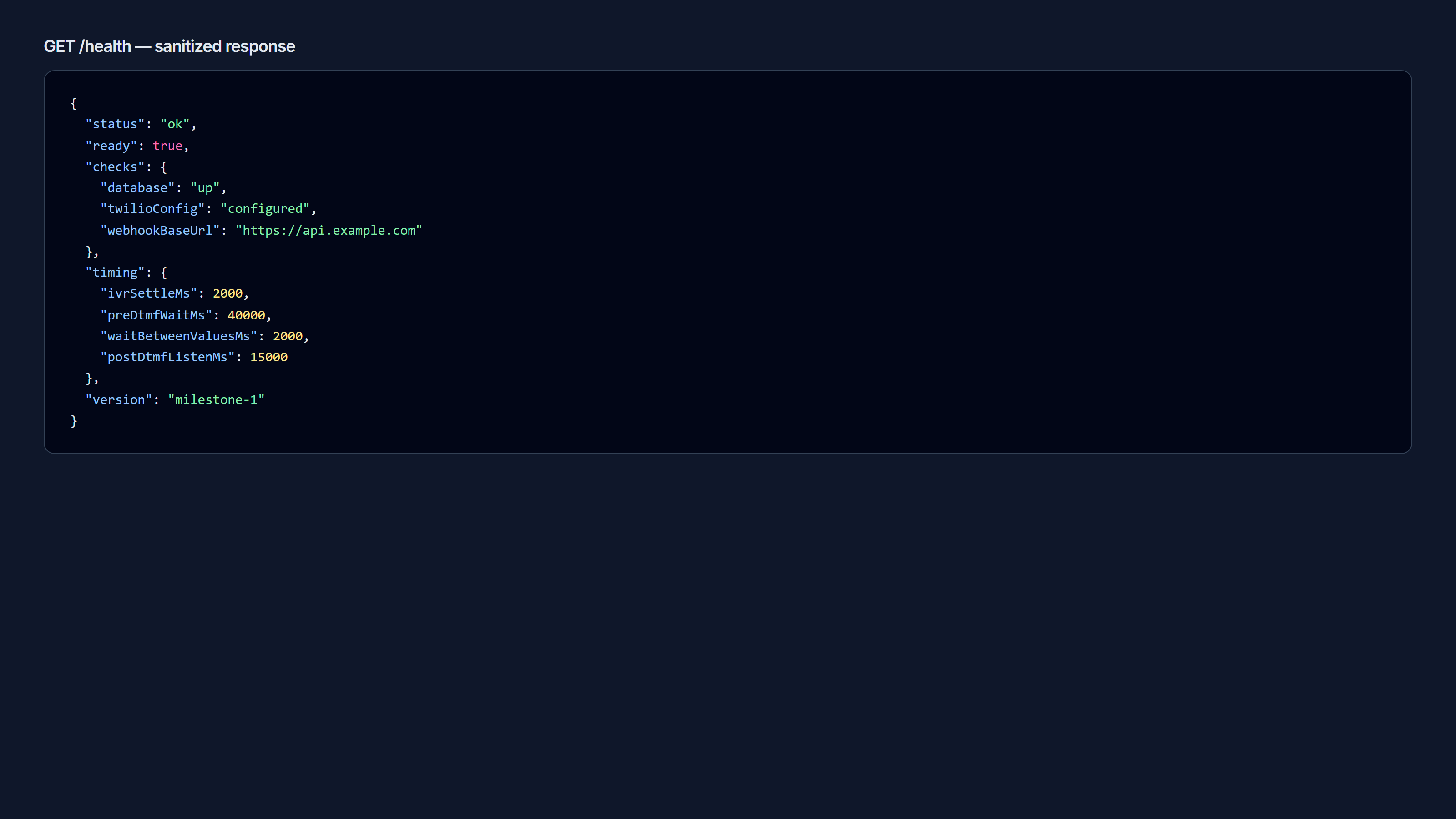

Sanitized GET health JSON showing ready flag and TwiML timing milliseconds

GET /health exposes ready: true only when Postgres, Twilio env, and public webhook base URL are all present—plus effective TwiML pause values in milliseconds.

Call & webhook workflow

sequenceDiagram
  participant UI as Next.js
  participant API as NestJS
  participant DB as PostgreSQL
  participant Tw as Twilio
  participant IVR as Authorized IVR
  UI->>API: POST /test-runs
  API->>DB: run RUNNING line BUSY
  API->>Tw: calls.create
  Tw->>IVR: outbound voice
  Tw->>API: POST /twilio/voice
  API-->>Tw: TwiML pause Play digits pause Hangup
  Tw->>API: POST /twilio/status
  API->>DB: SUCCESS release line
  UI->>API: GET /test-runs/:id

TwiML order: settle (default 2s) → pre-DTMF wait (default 40s) → Play digits= → between-values gap (2s) → listen window (15s) → hangup. Status callbacks map completed to attempt SUCCESS and release the line; terminal failures release the line even when calls.create fails.

Milestone 1 boundaries

  • In scope — one line, one attempt per Start, single DTMF value, webhook audit, Docker Compose stack.
  • Out of scope (later) — multi-line workers, transcription, winner detection, Stop/Resume, app login/JWT.

Outcomes

  • Repeatable authorized IVR test with Postgres audit trail—not console archaeology.
  • Timing as configuration (settle vs pre-DTMF wait) exposed in health and UI.
  • Signature-validated telephony callbacks stored as immutable call_events.
  • First-class phone_lines resource models BUSY/AVAILABLE for future concurrency.
  • Compose-ready stack: web :3000, API :3001, Postgres :5432, migrate + seed on boot.

No conversion or cost metrics are claimed; Milestone 1 proves the vertical slice for stakeholder demos and QA handoff.
