- Industry
- SMS operators · resellers · CPaaS teams
- Type
- Multi-tenant SMS / WhatsApp CPaaS
- Role
- Solo — architecture, FastAPI, Vue, worker
- Keys
- Platform · tenant/reseller · RBAC user
- Stack
- Vue 3 · FastAPI · PostgreSQL · Redis · Kannel
- Proof
- 11 running screens · 65 OpenAPI paths
The problem
Indian enterprises need SMS and WhatsApp with DLT templates, reseller tenancy and prepaid wallets — not a single Twilio account with no isolation between agencies.
Constraints
Delivery stayed inside the client's stack, tenancy, compliance and media-ownership boundaries. Where a choice was forced (suite vs owned plane, BYOC vs CPaaS, local vs cloud models), the architecture section below records the trade-off rather than a marketing rewrite.
Business requirements
Platform operator, tenant/reseller hierarchy, RBAC users, campaign send, DLT registration, wallet top-ups and provider routing (Kannel, Twilio, Gupshup) on one FastAPI + Vue control plane.
Engineering challenges
- Tenant tree — master, reseller and client rows with scoped queries.
- DLT compliance — template and sender IDs before broadcast.
- Provider abstraction — route SMS without forking the product per carrier.
The solution
SMS CPaaS platform CPaaS: landing, JWT auth, platform and tenant dashboards, campaigns, wallet, contacts and OpenAPI-documented REST — captured in eleven running screens on this site.
My role
Solo architecture and full-stack delivery — FastAPI, Vue 3, PostgreSQL, Redis and Kannel integration. Not a voice/PBX product; see CCaaS case studies for FreeSWITCH work.
Technology stack
Production considerations
- JWT expiry, permission codes and tenant_id on every mutating route.
- Seeded demo users must not ship to production builds.
- Marketing stats on the landing page are copy — not telemetry claims.
Product depth
Context. Not a voice / SIP / PBX platform
The case-study chrome on this site often assumes FreeSWITCH, WebRTC and Grafana. This repo is SMS CPaaS. Kannel was chosen because it is an SMPP router, not a media switch. Grafana, Prometheus and SIP are not in the codebase. Voice work is on FreeSWITCH CCaaS and Asterisk 22 UnifiedPBX.
Counts from the running OpenAPI document and Alembic tree — not production traffic or uptime: 65 OpenAPI paths, 15 router tags, 3 SMS providers (Kannel, Twilio, Gupshup), 13 Alembic revisions.
Screenshots
Public door — acquisition, not telemetry

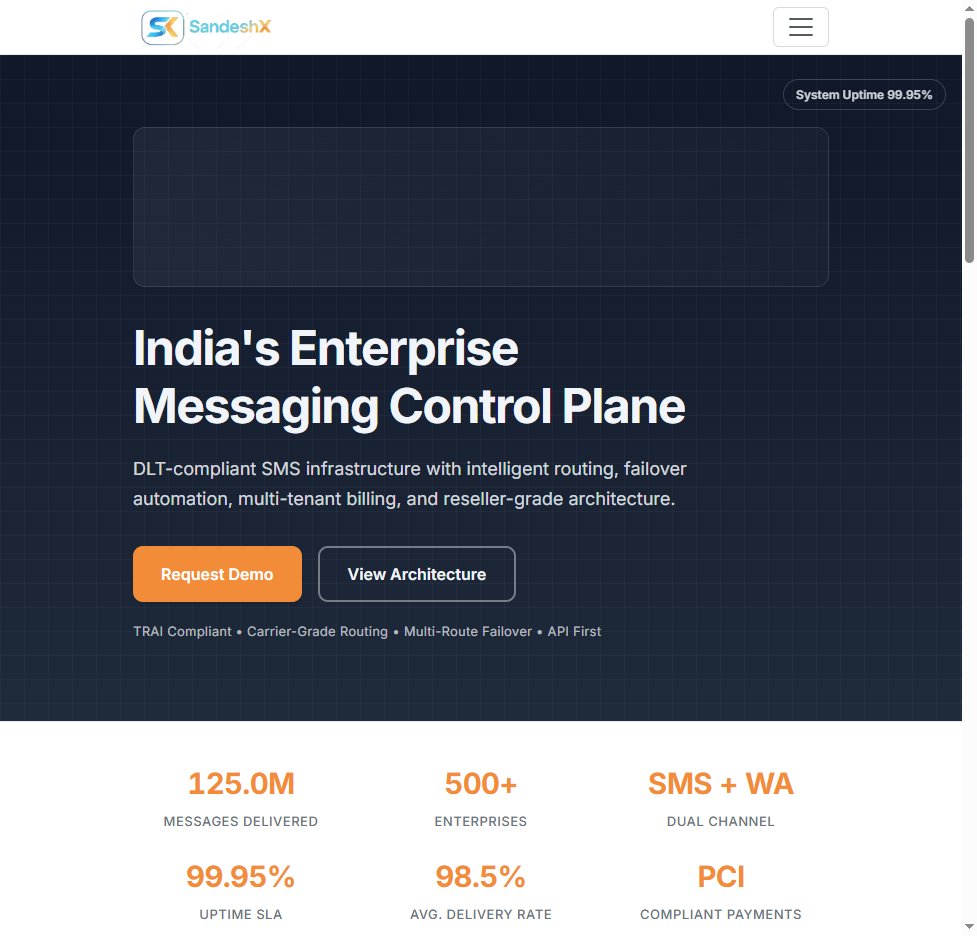

Hero: “India's Enterprise Messaging Control Plane.” CTAs, TRAI / routing / API-first badges. Dual-channel SMS + WhatsApp. GET /cms/landing plus hardcoded Vue sections. The 125.0M / 500+ enterprises / 99.95% uptime / 98.5% delivery tiles are marketing copy. They are not used as results on this page.
Screenshots
One door, three keys

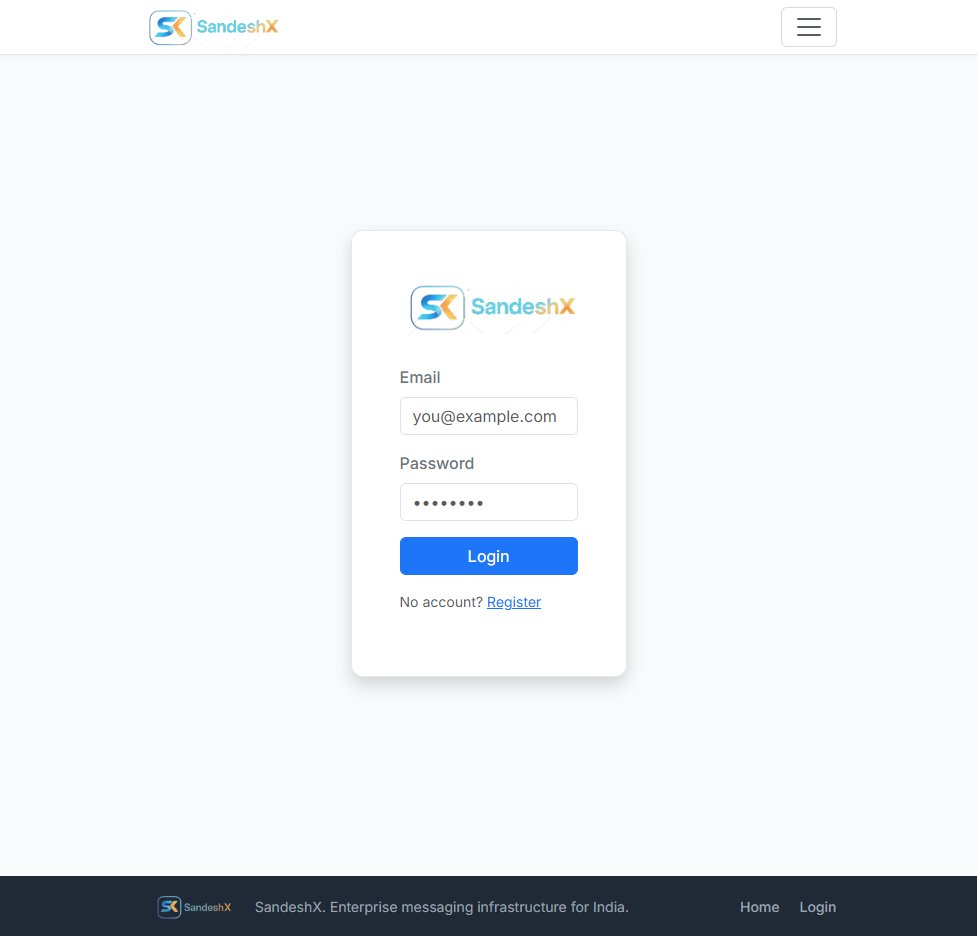

Email + password. POST /auth/login returns a JWT (HS256, default 60 minutes). Then GET /auth/permissions and GET /auth/me. SPA stores permission codes in sessionStorage; Axios sends Bearer. First-tenant register exists. Seeded local users in docs must not ship to production.
Who does what
| Role | Job | Surfaces in this capture |
|---|---|---|
| Platform | tenant_id IS NULL. Tenant lifecycle, routes, flags, audit | Platform Overview, Tenants, Feature Flags, Audit Logs |
| Tenant / reseller | master / reseller / client via parent_tenant_id | Dashboard, Campaigns, Templates, DLT, Wallet, Contacts, Routes |
| RBAC user | Permission codes plus user overrides | Nav gated by can(); missing permission → Settings |
Parent is credited after a client campaign debit. Margin in this build is a hardcoded 10%, not tenants.reseller_margin_percent.
Platform — is anyone sending?
The question this screen answers: “How many tenants are live, and did anything go out today?”
GET /admin/platform/overview behind require_platform_admin. This capture: SMS today 0, delivery 0%, 3 active tenants, 0 active routes, empty top-tenants table. Left rail still shows Platform Overview, Tenants, Routes, Compliance, Feature Flags, Audit Logs. “System healthy” in the top bar is a static label, not a probe of GET /health.
Tenant — spend, delivery, campaign load

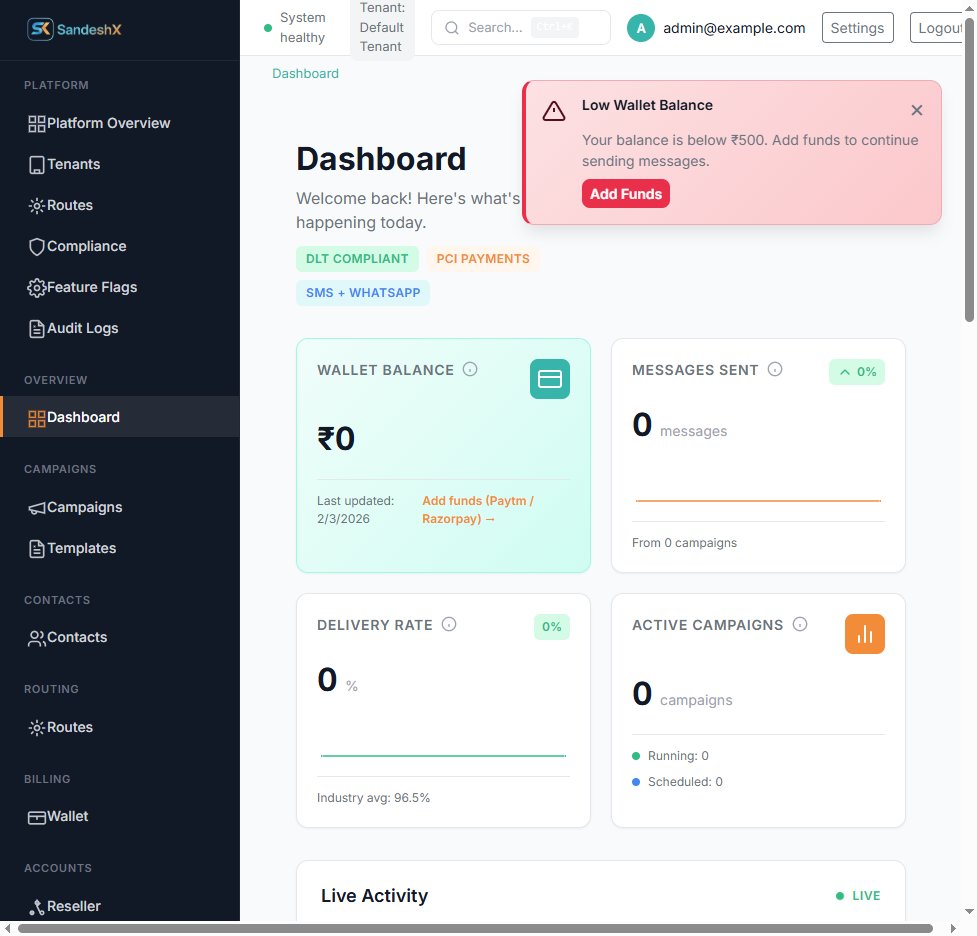

GET /dashboard/stats, /dashboard/realtime, /wallet/balance. Wallet ₹0, messages sent 0, delivery 0%, active campaigns 0. Low-wallet alert at ₹500 is a frontend threshold. “Industry avg: 96.5%” is hardcoded UI copy. Badges state the product domains: DLT, PCI payments, SMS + WhatsApp.
Campaigns — create is send
Name, approved template, contact list, DLT sender ID, Create & send. No separate Start button. Channel filter on the table. Pipeline: approved template + list → skip opted-out (and unconsented promotional) → DLT gate → render placeholders → segment billing → SELECT wallet FOR UPDATE → insert messages → enqueue Redis sms:send (2,000 IDs/batch). Pause/cancel patches campaign status; already-queued IDs can still drain.

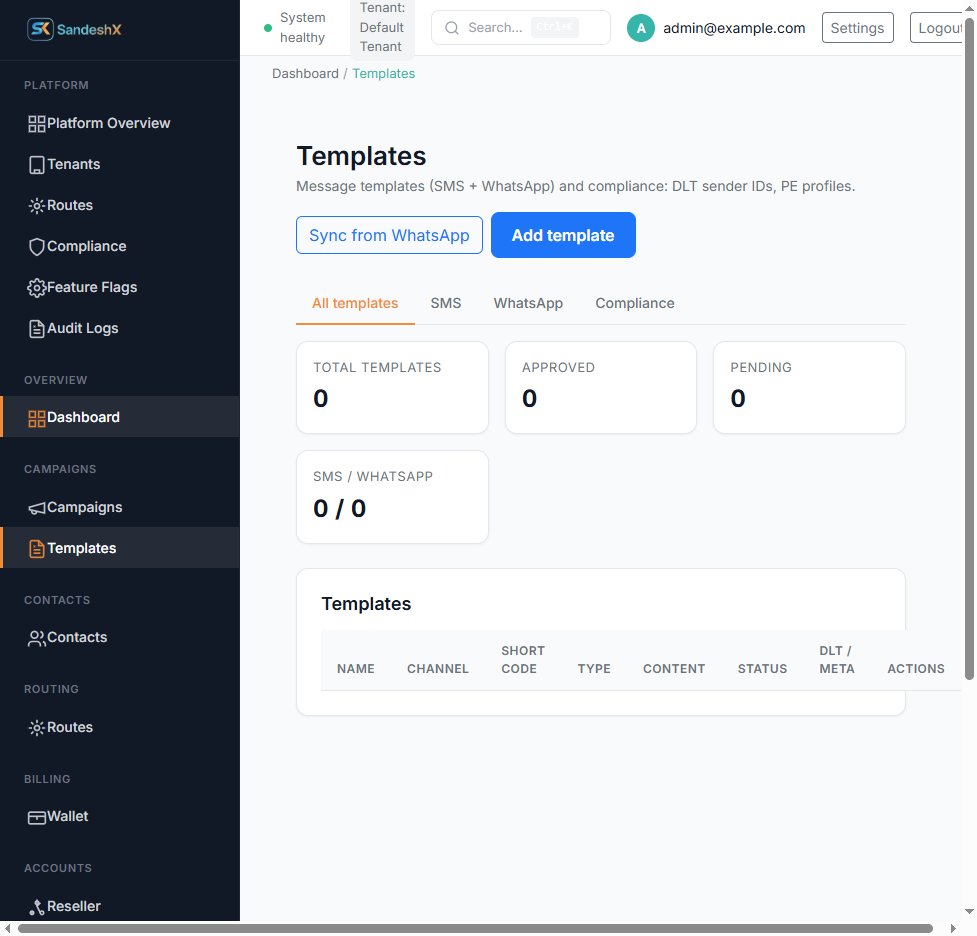

Tabs: All / SMS / WhatsApp / Compliance. Sync from WhatsApp needs WHATSAPP_BUSINESS_ACCOUNT_ID. Empty in this capture. Campaigns may only use approved templates. WhatsApp send is the exception to the queue: it runs synchronously inside POST /campaigns via Meta Graph v18; wallet cost is recorded as zero in this implementation.

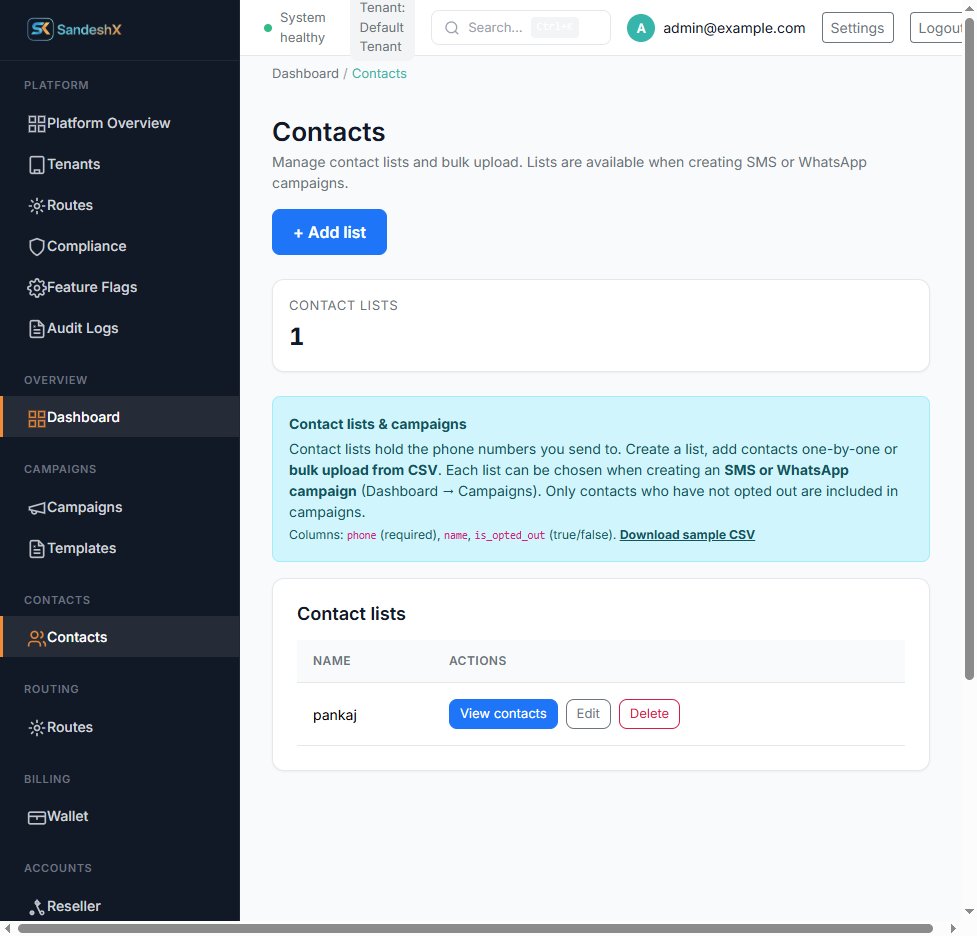

One list in this restore. In-product CSV columns: phone, name, is_opted_out. STOP/START MO webhooks flip that flag. Tenant for inbound currently uses a default tenant id in env, not DID-level mapping.
DLT — TRAI before the queue
PE profiles and sender IDs (header, route type, status). Template regex lives on templates, not a separate DLT-template table (migration 010 merged that model). Toggle DLT_VALIDATION_ENABLED / SettingsService. When the gate is on, mismatched traffic is never billed or queued.

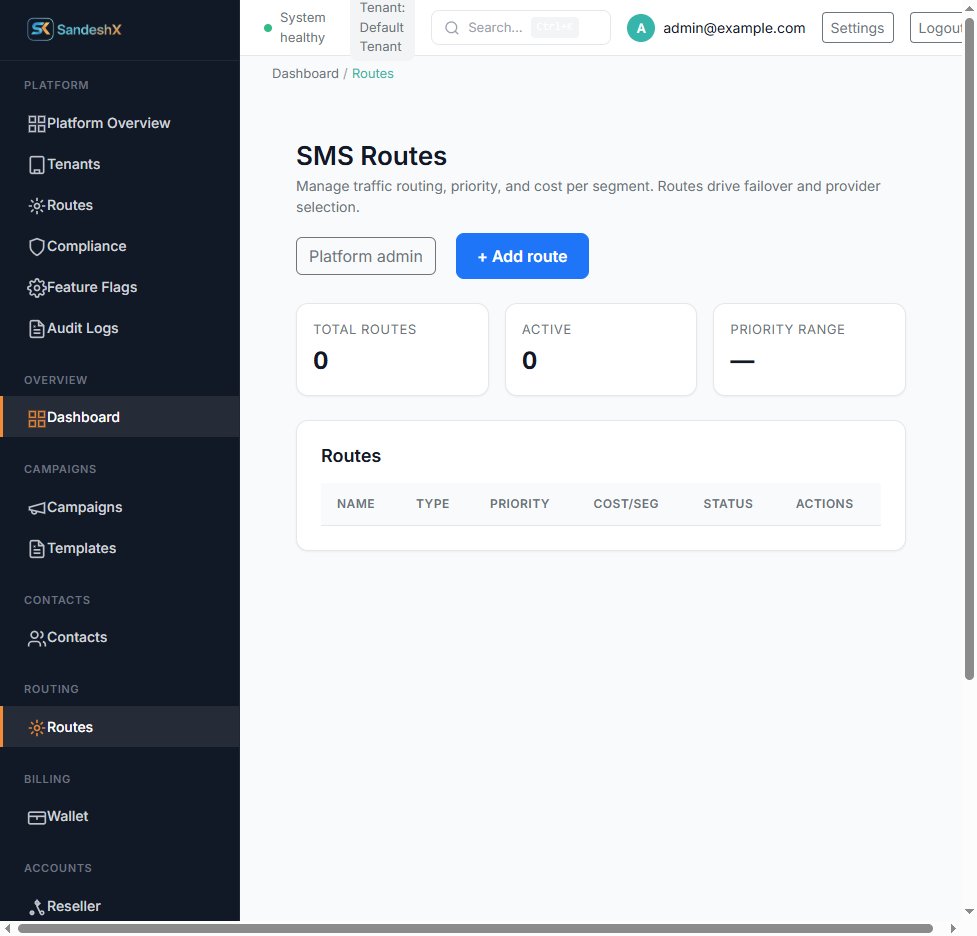

Empty inventory here; UI still exposes Kannel / Twilio / Gupshup. Worker uses provider + smpp_id from the selected route. Campaign create sorts by priority only. LCR and weighted-split helpers exist in routing_service.py and are unused by create. Failover rows can be stored; the worker does not auto-fail over on DLR failure.
Wallet — lock, then enqueue
Copy on the screen: card data never touches these servers. Paytm checksum and Razorpay HMAC credit the ledger; callbacks are idempotent on order status. Concurrent campaigns cannot overdraw: wallet row lock + segmenter (160/153 GSM, 70/67 UCS-2). Insufficient balance → HTTP 400, no enqueue. Failed SMS is not auto-refunded on DLR in this build (a credit helper exists; webhooks do not call it).
| Hop | Sync or async | Failure mode |
|---|---|---|
| Login / CRUD / DLT / wallet lock | Synchronous | HTTP 4xx, no enqueue |
| SMS submit | Async (Redis + worker) | 3 retries, then messages.failed |
| WhatsApp send | Synchronous in create | Row marked failed; wallet cost 0 |
| DLR / MO / payment callback | Synchronous webhook | Idempotent wallet; DLR updates status |
The contract the UI already uses

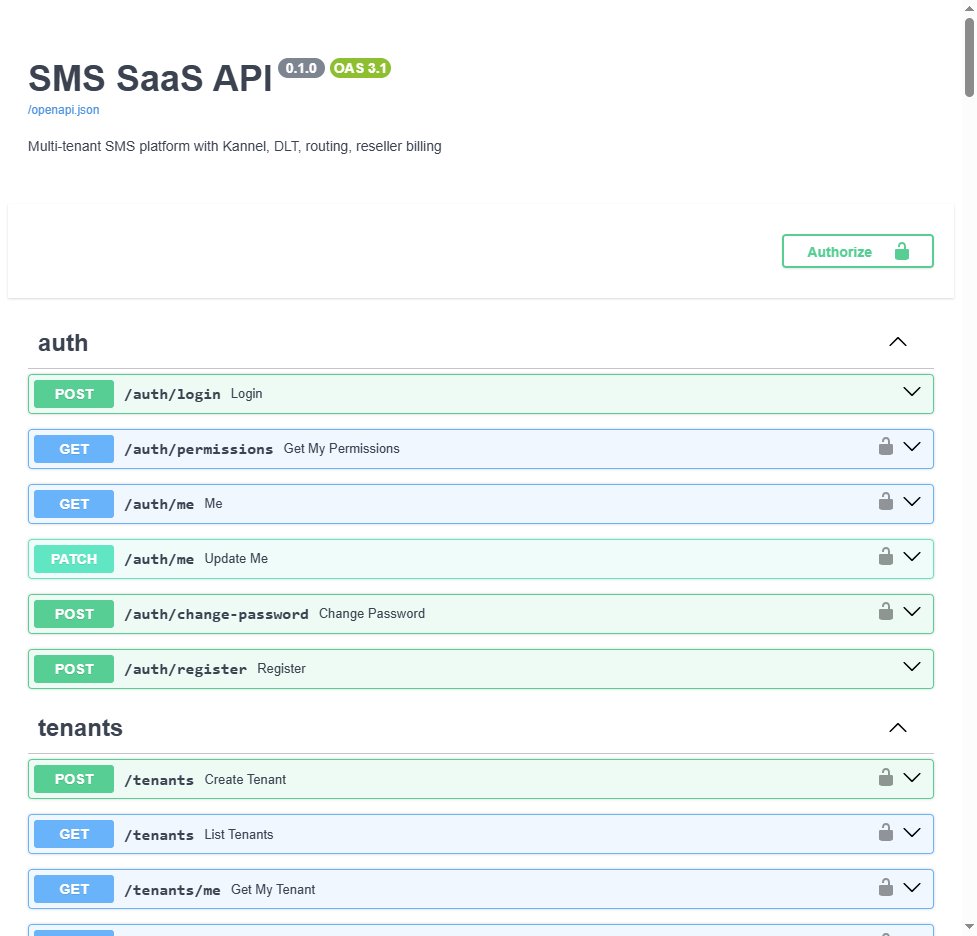

Swagger at /docs — SMS SaaS API 0.1.0, OAS 3.1, 65 paths, 15 tags. Bearer Authorize. Public: login, register, health, CMS, contact form, payment callbacks, SMS webhooks. Locked: campaigns, wallet, DLT, platform admin. Generated from FastAPI signatures — not a separately maintained YAML file.
Working-system video
The recording is the product walking — not a slide deck. Same stack as these screens. UnifiedPBX.in is not a public SMS CPaaS platform tenant login.
Watch on YouTube → · Dedicated watch page →
How the system flows
Create and send is one action: the API validates DLT and wallet, enqueues Redis batches, and workers submit to Kannel or HTTP SMS providers.
flowchart LR T[Tenant Create and Send] --> V[Template DLT consent check] V --> W[Lock wallet debit] W --> Q[Redis sms:send batches] Q --> K[Worker asyncpg httpx] K --> S[Kannel SMPP or Twilio Gupshup] S --> D[DLR update status]
Architecture
The rule: FastAPI decides; the worker submits; Kannel (or HTTP aggregators) execute.
flowchart TB Vue[Vue 3 landing tenant platform] API[FastAPI 65 paths OpenAPI] PG[(PostgreSQL 16)] Redis[(Redis 7 queue)] W[Worker retries] K[Kannel SMPP] TW[Twilio Gupshup HTTP] Vue --> API API --> PG API --> Redis Redis --> W W --> K W --> TW
WhatsApp is not on that async hop: API → Meta Cloud inside campaign create. arq is in requirements.txt; the queue is a Redis list, not ARQ. Compose runs Postgres and Redis by default; Kannel is an optional profile. API/UI run locally. Kubernetes, Grafana and a CI test suite are not provided.
Engineering challenges
| Problem | Approach | Residual |
|---|---|---|
| HTTP must not wait on SMPP | Redis batches | No DLQ UI; pause is weak |
| TRAI rejects unpaid spam | DLT + consent before queue | Depends on toggle + data quality |
| Concurrent prepaid send | Wallet row lock + ledger | Failed SMS not auto-refunded on DLR |
| Fresh migrate vs ORM seed | 002 uses Tenant columns from 011 | Open migration debt |
- Multi-provider DLR → normalise to delivered/failed + raw
dlr_status - PCI → hosted checkout; PAN never posted to this API
- Tenant leakage →
tenant_idfrom JWT on queries (application layer, not row-level DB policies) - Known hardening items: SMS DLR/MO webhooks unauthenticated;
X-Tenant-IDaccepted without a platform-admin gate
My role
Solo engineer: control plane vs data plane, FastAPI routers and Pydantic, Vue SPA, schema and 13 Alembic revisions, wallet pre-deduct, DLT gate, provider adapters, webhook normalisation, Compose for Postgres/Redis/optional Kannel, backup scripts, OpenAPI.
Architecture FastAPI Vue 3 Kannel SMPP DLT Wallets
Engineering outcomes
No invented delivery-rate SLA. What the running UI and spec actually show:
- One login that fans out by platform vs tenant vs permission codes
- Prepaid wallet with row lock before enqueue
- DLT PE / sender IDs and approved-template campaign create
- Async SMS worker (Kannel, Twilio, Gupshup) and sync WhatsApp via Meta
- Paytm / Razorpay signed, idempotent credit — no PAN
- OpenAPI 3.1 at
/docs(65 paths) - Honest gaps: unused LCR helpers, no Grafana,
scheduled_atnot a running scheduler
Architectural insight
If the HTTP request waits on SMPP, you built a form, not a CPaaS. If DLT is a spreadsheet beside the composer, TRAI will still reject the traffic and the wallet will still have been charged. The product is identity, compliance and prepaid accounting — SMSC is the adapter. Related: watch the demo, vertical products, CCaaS when the same operator also needs queues, SMS CPaaS platform article for the reseller narrative.
